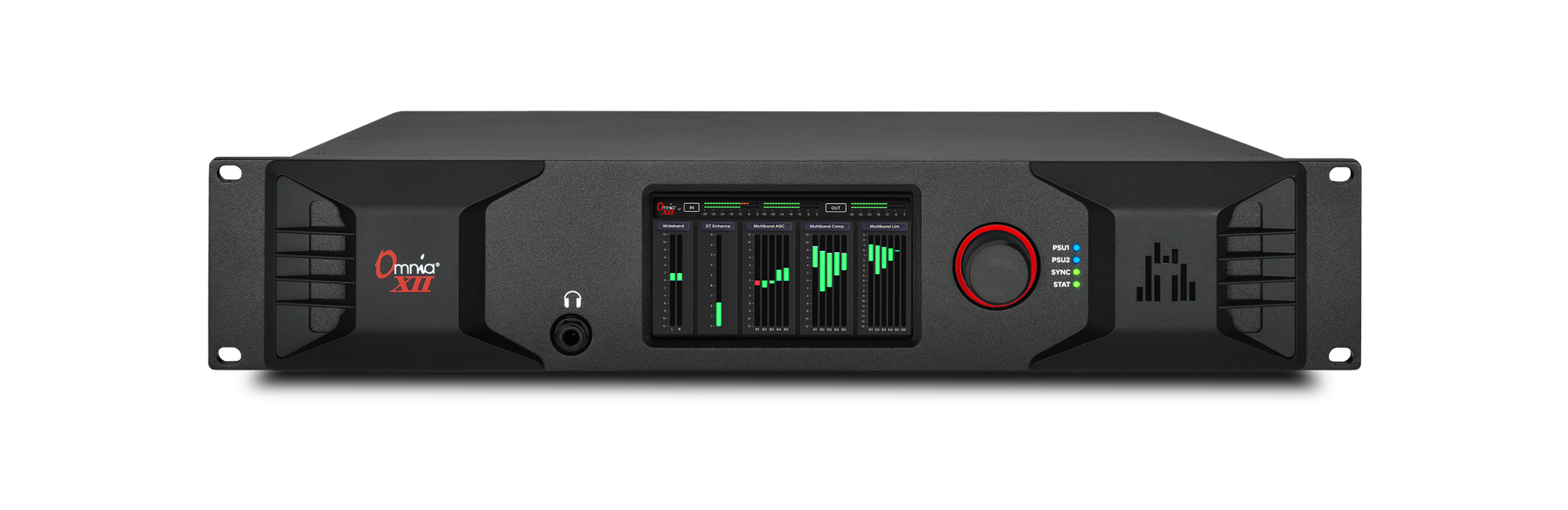

Omnia XII Broadcast Audio Processor

Overview
Features
In Depth
Specifications
Buy Now

Omnia XII Overview

The culmination of decades of audio processing expertise and experience from Frank Foti and the Omnia team comes together in their best-sounding and most forward-thinking processor to date: Omnia XII.

A processor is more than hardware you rack up and plug in, or a collection of algorithms and parameters to adjust. It is a way to connect you with your listeners and create a visceral, emotional experience they can feel as well as hear.

Omnia XII’s architecture allows us to put our best foot forward today while paving the way for new features, sonic improvements, and whatever tomorrow demands via software updates.

Omnia XII’s Wideband AGC + 5-band multiband AGC and compressor + 6-band multiband limiter processing design, dynamic EQ, and unparalleled bass management features pair up with our most advanced clipper design yet, delivering a clear, warm, powerful sound that delivers effortless loudness, even at major-market levels.

As with all Telos Alliance products, Omnia XII is backed by our industry-renowned, world-class support.

Omnia XII Features

Wideband AGC + 5-band multiband AGC and compressor + 6-band multiband limiter architecture
Unparalleled bass management features
Dynamic EQ
Advanced FM clipper design for clean, punchy, and effortless, distortion-free loudness
Browser-based HTML5 UI
Quicktweak features to demystify complex processor tuning
Processing for FM/HD-1 signals
Comprehensive dynamic RDS with optional UECP support
Optional streaming receiver input, supporting Super Hi-Fi HLS+ stream receiver, including metadata routing to RDS and up to 24 hours of backup playout capability
ITU-R BS.1770 loudness and MPX power meters
Built-in diagnostic tools, including a digital oscilloscope and an FM spectrum analyzer
Insertion point supporting external ratings watermark encoder hardware
SDK integration to support Nielsen, Kantar, and Ipsos watermark encoding
1 analog and 3 AES inputs and outputs
MPX Composite I/O over both analog (BNC) and AES3 I/O
Support for SSBSC (Single Sideband Suppressed Carrier)
Livewire+ AES67 I/O
Linear MPX over IP standard, with optional µMPX encoding
3 network interfaces for remote control and SMPTE 2022-7 workflows to provide flexible, seamless redundancy and stream protection
Supports PTP and PPS time sync protocols with external GPS / PPS inputs
Rest API communication supporting 3rd party integration
Livewire Remote Protocol (LWRP) and hardware GPIO via DB-15 connector
Relay bypass for primary AES and Composite I/O
Integrated input mixer for source switching and failover
Redundant dual internal power supplies
Feature-rich built-in backup audio player
Dual software banks for secure updating
Omnia XII’s modular software architecture allows us to continually improve performance and introduce new features, ensuring the processor you buy today isn’t yesterday’s news tomorrow.
Features and options on the Omnia XII roadmap for Q3 2026 include separate processing paths for HD-2 and HD-3, BS.412 power limiting, and integrated Telos Z/IPStream® stream encoding for each audio source.

Omnia XII In Depth

The content you create and broadcast - whether it’s today’s latest music and familiar feel-good hits from decades past, or late-breaking news, talk, and sports - is more than sonic wallpaper. It is an opportunity to connect one-on-one with your audience, and it requires an audio processor that delivers an experience they not only hear, but feel.

Omnia XII, the new flagship processor from Frank Foti and the Omnia team, is the culmination of decades of experience, ratings-proven success, and fresh ideas that challenge technical and sonic boundaries in a way that impacts your listeners on an emotional level. That’s what we mean when we say that Omnia XII is “built from the soul up.”

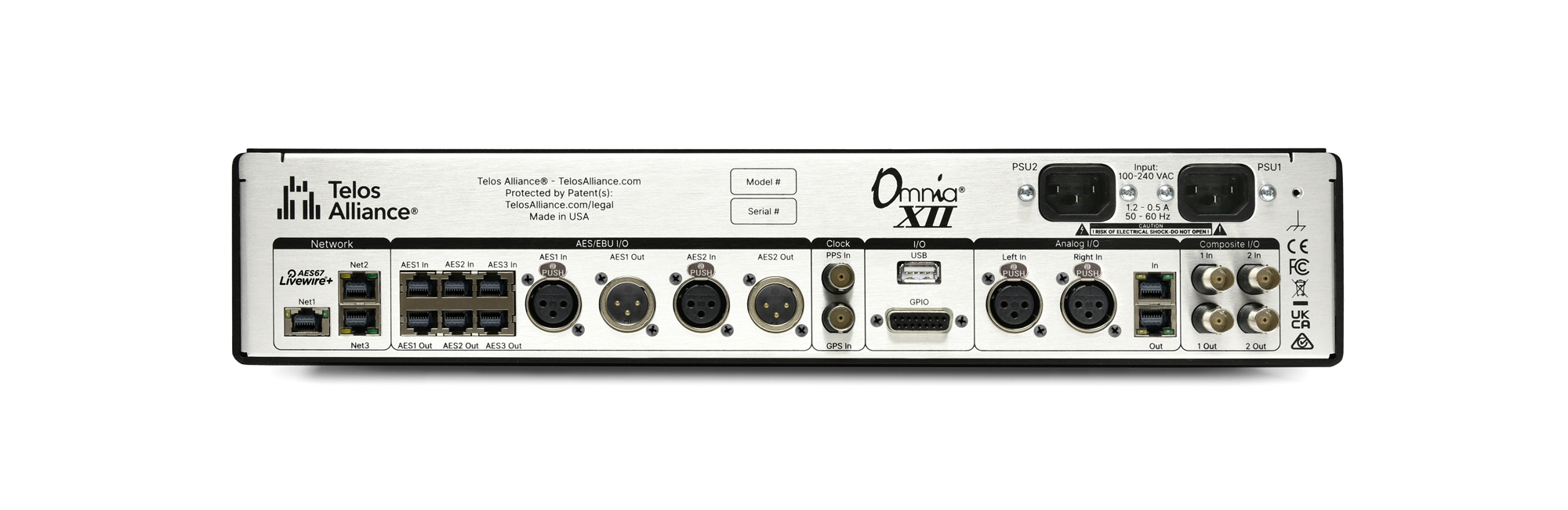

Built on a rack-space-friendly 2RU platform, Omnia XII has the look and feel of a traditional hardware processor, complete with analog, AES3, and composite I/O alongside Livewire+ AES67 and the redundant AoIP network capabilities required in a modern broadcast facility. But beyond the metal, Omnia XII has the design flexibility and ample horsepower to allow performance enhancements and new features, and quickly respond to emerging tech and evolving standards - all without the need for new hardware. The processor you choose now is just as performant and relevant in the future as it is today.

Sonically, Omnia XII’s all-new processing algorithms employ an intelligent Wideband AGC + 5-band multiband AGC and compressor + 6-band multiband limiter design, dynamic EQ, and powerful bass management tools that provide everything you need to create your custom sound, from open and relaxed to punchy and loud. Frank Foti’s “Clemenza” final clipper - his cleanest and most musical to date - delivers effortless loudness with no compromise to audio quality.

Omnia XII includes our intuitive QuickTweak system that adjusts multiple, interrelated controls simultaneously, demystifying complex processing for operators of any skill level. As always, processing experts can access the full suite of controls expected in a flagship offering.

ITU-R BS.1770 loudness and MPX power meters combine with built-in diagnostic tools, including a digital oscilloscope and FM spectrum analyzer, to display critical parameters and aid in setup and tuning.

A standard Omnia XII configuration includes processing for one FM/HD-1 signal. A comprehensive RDS encoder is included and supports metadata input from common playout systems. An advanced RDS option supports UECP, AF Method B, and other extended RDS features.

A dedicated insertion point allows external watermark hardware encoders to be introduced at precisely the right point in the signal path for maximum effectiveness. SDK software integrations of Nielsen, Kantar, and Ipsos watermarking are optionally available.

An optional built-in stream receiver supports Super Hi-Fi’s HLS+ streaming technology with up to 24 hours of backup playback capability, as well as metadata to RDS routing.

Audio I/O includes analog, AES3, analog composite, digital composite (Omnia Direct), standard linear MPX over IP, and optional µMPX encoding, along with native Livewire+ AES67 for AoIP. Three independent network interfaces provide HTML5 browser-based remote control and SMPTE 2022-7 support for flexible, seamless redundancy and stream protection, including PTP and PPS time sync protocols.

Relay bypass is provided on AES 1, AES 2, and Composite 1 I/O for failsafe and easy switch-over to backup airchains. Dual independent internal power supplies, a feature-rich built-in backup audio player, and dual software banks for secure updating offer peace of mind for unforeseen events.

Livewire Remote Protocol (LWRP) and opto-isolated hardware GPIO on a rear-panel DB-15 connector combine with Rest API communication to provide remote triggering and control of events and parameters.

Omnia XII Specifications

Analog Audio Line Input

Left/Right Stereo. Electronically balanced, mirrored on XLR or RJ45 connectors
Input impedance 48k ohms resistive.
Maximum Input Level (0dbFS): +24 dBu.
Nominal Input Level: +4dBu, which nets a -18dBFS input meter reading on a steady-state signal
Dynamic Range: 110dB ref 0dBFS
Frequency Response +- .25db 20-20kHz
THD+Noise <.005% @ 1kHZ unweighted, -6dBFS

A/D Conversion

24-bit 128 times oversampled delta-sigma converter with linear-phase anti-aliasing filter. Pre-ADC anti-alias filter, with high-pass filter at <10 Hz.

Analog Audio Line Output

Left/Right Stereo; Electronically balanced on RJ45 connector.
Output Impedance < 50 ohms.
Minimum load Impedance: 600 ohms.
Output Level adjustable from -2 dBu to +24dBu peak in 0.1dB steps.
Frequency Response +- .25db 20-20kHz
THD+Noise <.005% @ 1kHZ unweighted, -6dBFS

D/A Conversion

24 bit 128x oversampled. dynamic range 95dB ref 0dBFS, no spurious tones > 10dB below noise floor

Frequency Response

Complies with the standard 50 or 75 microsecond pre-emphasis curve within ± 0.5 dB, 30 Hz to 15 kHz; the analog left/right output and AES/EBU Digital outputs can be configured for flat or pre-emphasized output

System Latency

36-50ms dependent on processing and clipper selection through the “FM” channel, as measured from the analog inputs through the composite MPX output.

Digital Audio Input

AES 1 & 2: Relay Bypass equipped, EMI-suppressed XLR-F, mirrored with RJ45 connectors
AES 3: RJ45 connector
Standard 110 ohm source impedance
Status bits follow AES-3 Standard.
24-bit resolution, software selection of stereo, mono from left, mono from right, or mono from sum.
Automatically accepts and locks to valid 44.1 / 48 kHz AES-3 signals

Digital Audio Output

AES 1 & 2: Relay Bypass equipped, EMI-suppressed XLR-M, mirrored with RJ45 connectors
AES 3: RJ45 connector
Standard 110 ohm source impedance
Status bits follow AES-3 Standard.
AES Cable Length: 100 meters using CAT6 or Belden 1800B
24-bit resolution, software selection of stereo, mono from left, mono from right, or mono from sum.
Output Sample Rates: 192kHz, 48 kHz, and 44.1 kHz (supports Omnia Direct MPX over AES on all ports
Digital Output Level: AES-3 standard for peak-to-peak 2-7v at 48kHz and 192kHz into a 110 Ohm load. -22.0 to 0.0 dBFS software adjustable
AES Cable Length: 100 meters using CAT6 or Belden 1800B
>120 dB S/THD+N

External Sync Input

Output sample rate can be synchronized to the signal present on the AES/EBU input, or to an AES3 signal applied to the Ext. Sync input connector.
PPS and GPS inputs support pulse per second (10MHz) signals for high-precision synchronization

MPX Composite

Analog MPX/SCA Inputs

Analog MPX/SCA input converted to digital, which can be mixed into the composite output to add the sub-carriers or switched to select an alternative composite source
Connectors: Relay Bypass equipped on MPX 1, BNC with EMI suppression
Input Level: 10v P-P
Input impedance: Hi Z
Frequency response (after sw correction): +/-0.01dB, phase +/-2 degrees 40 Hz - 53 kHz
S/N: >85dB ref: 10Vp-p 20Hz - 200kHz measurement bandwidth.
Distortion: < 0.01% THD 20 Hz - 53kHz

Analog MPX Outputs

Rear Connector: Relay Bypass equipped on MPX 1, BNC with EMI suppression
Output impedance: 5Ω
Output Level: 10v P-P (internal jumper for a low level of 4V as safety)
Maximum cable 100’ / 30M RG-58U.
Frequency response (after sw correction): +/-0.01dB, phase +/-2 degrees, 40 Hz - 53 kHz, >-1dB at 2Hz, >-10dB at 76kHz
S/N: >85dB ref: 10Vp-p 20Hz - 200kHz measurement bandwidth.
Distortion: < 0.01% THD 20Hz - 53kHz
19 kHz Reference output available on either MPX output 1 or 2

MPX Performance

Pilot
- Stability: 19 kHz, ± 0.5 Hz.
- S/N: -85 dB typical, 75 µSec de-emphasized across 15 kHz, at 100% modulation
- Distortion: < 0.02% THD 20 Hz – 15 kHz, 75 µSec de-emphasized @ 100%.
- Adjustable from 4.0% to 12.0% in 0.1% steps and OFF.
Stereo Separation: > 55 dB, 40 Hz – 15 kHz.
- Linear Crosstalk: > -80 dB, main-to-sub or sub-to-main channel @ 100%.
- Non-linear Crosstalk: > -80 dB, main to sub or sub to main @ 100%.
- 38 kHz Suppression: > 70 dB @ 100%.
- 76 kHz Suppression: > 80 dB @ 100%.
- Pilot Protection: > -60 dB relative to 9% pilot injection, ± 1 kHz.
- 57 kHz (RDS/RBDS) Protection: > -50 dB.

Remote Control:

HTML5 browser-based GUI

GPI Interface

Fully configurable Livewire GPIO
DB-15 with EMI Suppression, Opto Isolated using 5 in / 5 out xNode wiring standard
Includes +5v, 100mA power with internal self-resetting thermal circuit breaker. EMI-suppressed DB-15 female connector

Power

Dual Internal. Overvoltage and short circuit protection.
Voltage: 100-250 VAC, 47-63 Hz, Typical: 65W RMS, Max: 90W RMS
2 x EMI-suppressed IEC male connectors
Maximum power consumption 76 watts

Ethernet & AoIP

Hardware

3 Rear Panel GigE ports supporting IEEE 1588, with status indicators associated with jacks
EMI-suppressed RJ-45 connector with shielded jacks to chassis
Fully independent NICs (able to be separate subnets, IP & MAC addresses).
